Other Timing Tool
TG0521

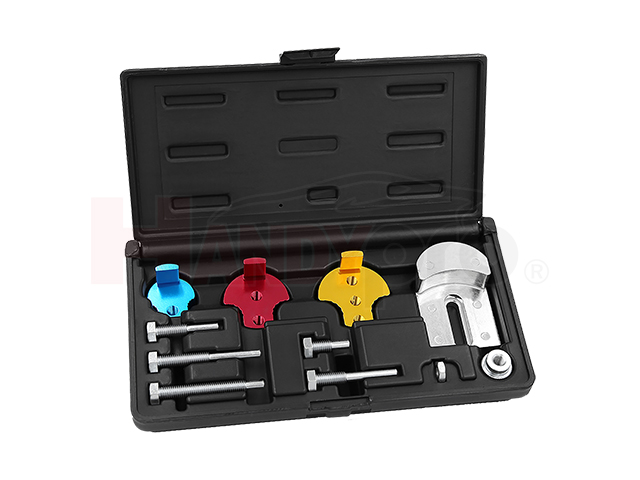

Stretch Belt Tool Kit
Specifications
Kit for mounting and dismounting the stretch belt without damaging pulleys and belts.
Fast, easy and correct belt replacement.
Application for the below brand, BMW, Cadillac, Chevrolet,
Chrysler, Citroen, Fiat, Ford, GMC, Isuzu, Iveco, Lancia,
Lincoln, Mazda, Mercedes, Peugeot, Volvo, etc.
Fast, easy and correct belt replacement.
Application for the below brand, BMW, Cadillac, Chevrolet,
Chrysler, Citroen, Fiat, Ford, GMC, Isuzu, Iveco, Lancia,
Lincoln, Mazda, Mercedes, Peugeot, Volvo, etc.
Mounting:
Belt installer: Dia. 32mm, 45mm, 50mm.
Screw:
M8x25, Dia. 5.9mm
M8x40, Dia. 5.7mm
M8x53, Dia. 5.7mm.
M8x65, Dia. 5.6mm, Length 32.5mm.
Dismounting:
1 PC belt remover and self locking nut.
Fixing nut: M8.
Screw: M8x65, Dia. 5.6mm, Length 11.5mm.
M8x65, Dia. 5.6mm, Length 32.5mm.
Material: aluminum 6061, 1144 steel.
Finish: anodizing and zinc plated.
Belt installer: Dia. 32mm, 45mm, 50mm.
Screw:
M8x25, Dia. 5.9mm
M8x40, Dia. 5.7mm
M8x53, Dia. 5.7mm.
M8x65, Dia. 5.6mm, Length 32.5mm.
Dismounting:
1 PC belt remover and self locking nut.
Fixing nut: M8.
Screw: M8x65, Dia. 5.6mm, Length 11.5mm.
M8x65, Dia. 5.6mm, Length 32.5mm.
Material: aluminum 6061, 1144 steel.
Finish: anodizing and zinc plated.
Packaging: blow mold case
24/SET/CTN/16/16.5/KGS/1.6’
24/SET/CTN/16/16.5/KGS/1.6’
