Truck Service Tool
TK0268A
Vacuum-Type Coolant Refill Kit for Heavy Duty Vehicles
Specifications
Set for refilling new coolant by creating a vacuum in the cooling system.
No need to undergo the time-consuming air bleeding after refilling new coolant.
Conical adapter offers a wide application to different radiator filler necks on heavy duty vehicles.
Large internal passages allow fast refill, suitable for large-volume heavy duty cooling systems.
Swivel gauge can be turned at 360°.

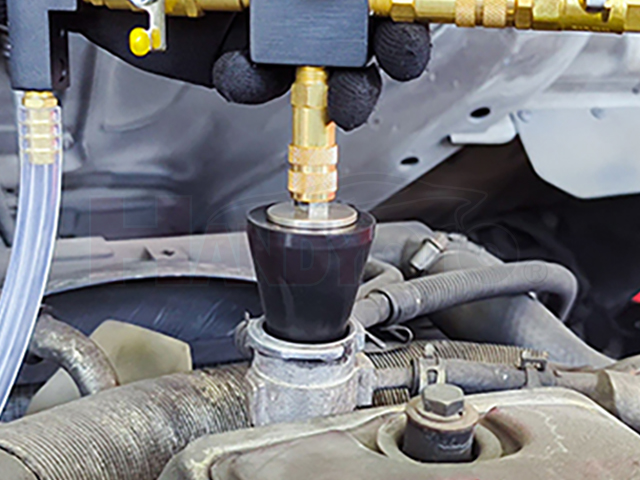

Users can easily read the gauge even when the tool is mounted vertically on a truck's expansion tank.
No need to undergo the time-consuming air bleeding after refilling new coolant.
Conical adapter offers a wide application to different radiator filler necks on heavy duty vehicles.
Large internal passages allow fast refill, suitable for large-volume heavy duty cooling systems.
Swivel gauge can be turned at 360°.
Users can easily read the gauge even when the tool is mounted vertically on a truck's expansion tank.
.jpg)

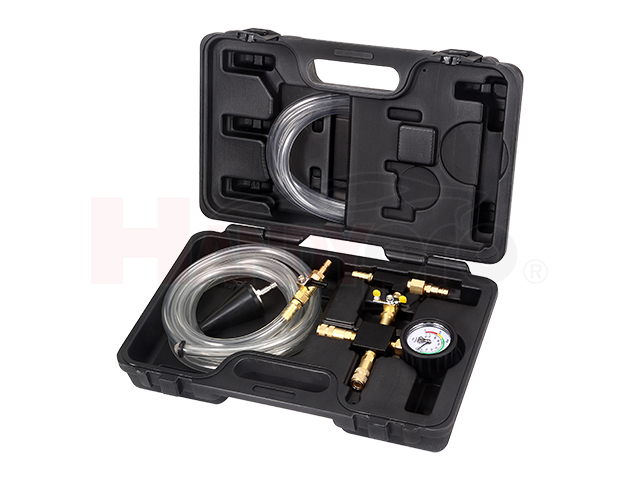

| TK0268A - Product description | ||
| 1 | Shop air connector |
To connect to an air compressor
|
| 2 | Air valve |
To control pressurized air
|
| 3 | Vacuum gauge |
Gauge reading: -1 - 0 bar / -76 - 0 cmHg
|
| 4 | Coolant hose connector |
Quick coupling for connecting to the coolant hose provided
|
| 5 | Coolant valve |
To control coolant flow
|
| 6 | Conical adapter connector |
Quick coupling for connecting to the conical adpater provided
|
| 7 | Drain hose |
OD 14mm x ID 9.5mm x 1500 mm length
|
| 8 | Conical adapter |
To connect to expansion tank filler necks
|
| 9 | Coolant hose |
OD 14mm x ID 9.5mm x 2500 mm length
|
| Packing list | |
| Item NO. |
TK0268A
|
| Packaging |
Blow mold case
|
| Packing |
10 SETS / CTN / 19.5 / 20.5 KGS / 4.9'
|
