Tool for Tube and Pipe
GL0781

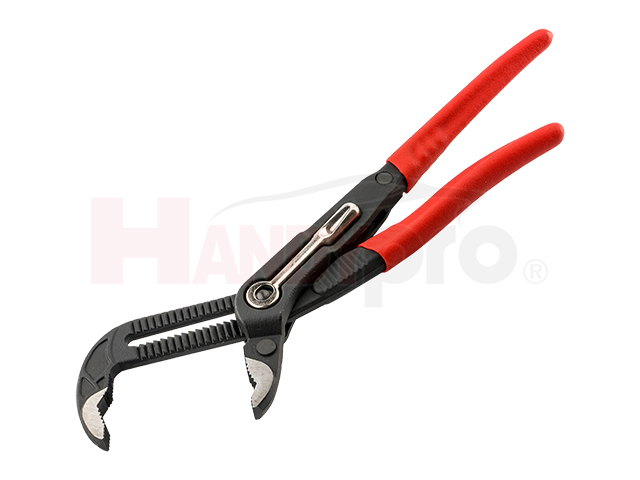

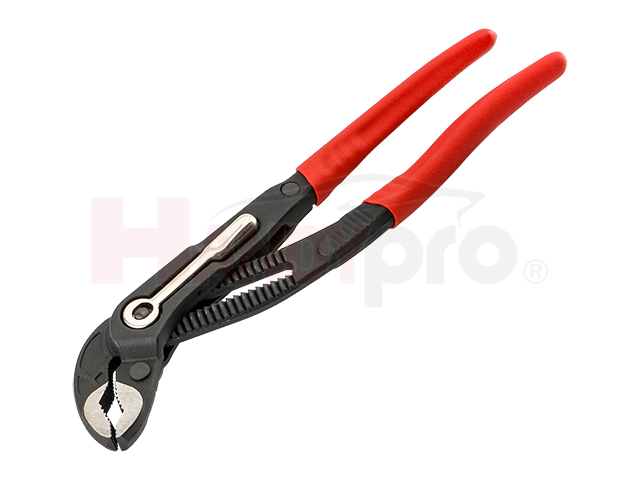

10" Quick-adjust Pipe Wrench

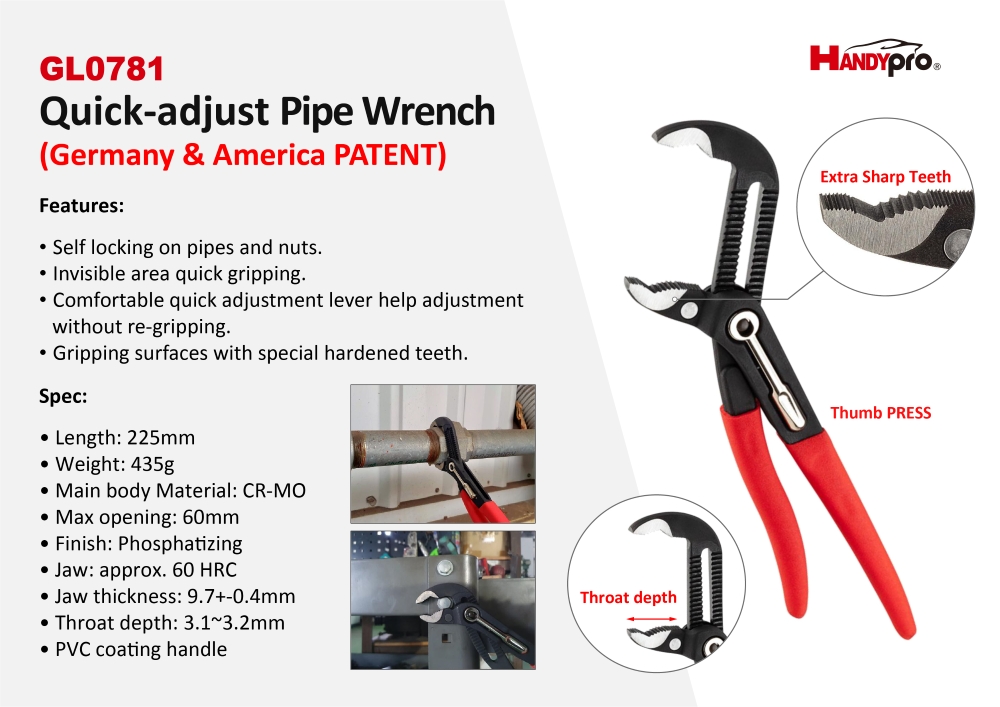

Specifications
Quickest possible adjustment with closed pliers' shanks directly at the workpiece while gripping.

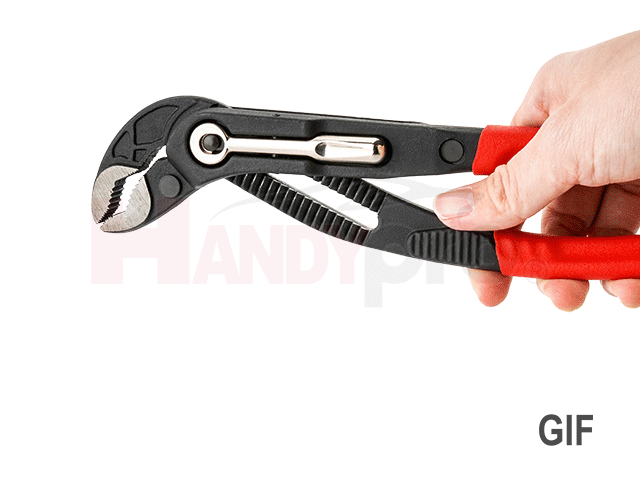

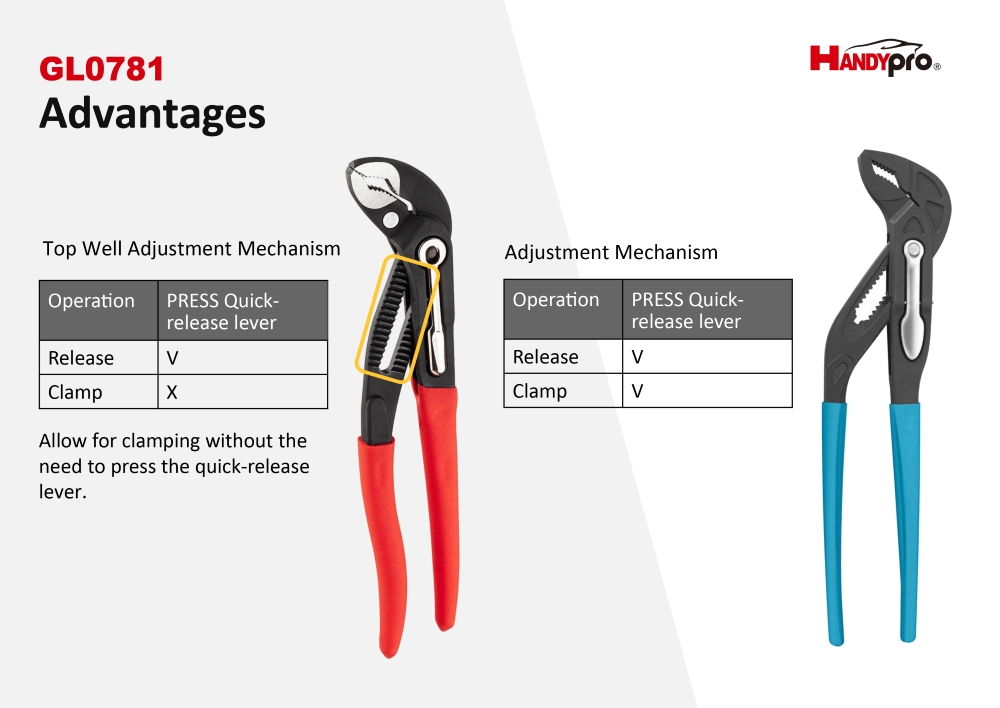

Comfortable quick adjustment lever help adjustment without re-gripping.
Self-locking on pipes and nuts: no slipping on the workpiece and low hand force required.

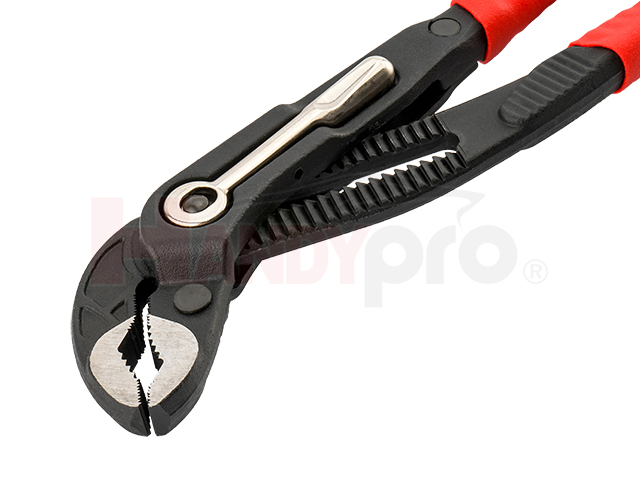

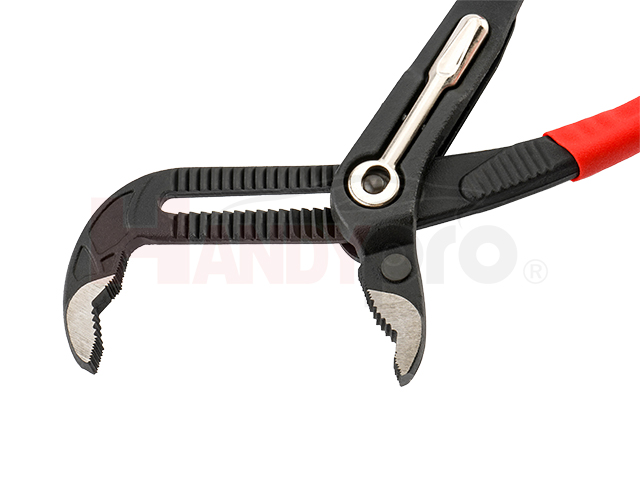

Gripping surfaces with special hardened teeth, teeth hardness approx. 60 HRC: high wear resistance and stable gripping.
Reliable catching of the hinge bolt: no unintentional shifting.
Guard prevents operators' fingers being pinched.
Chrome Molybdenum steel, forged, multi-stage oil hardened.
Free from the space limitation
Quick-adjust lever
PVC coating handle
Comfortable quick adjustment lever help adjustment without re-gripping.
Self-locking on pipes and nuts: no slipping on the workpiece and low hand force required.
Gripping surfaces with special hardened teeth, teeth hardness approx. 60 HRC: high wear resistance and stable gripping.
Reliable catching of the hinge bolt: no unintentional shifting.
Guard prevents operators' fingers being pinched.
Chrome Molybdenum steel, forged, multi-stage oil hardened.
Free from the space limitation
Quick-adjust lever
PVC coating handle

| Product description | |
| Item NO. |
GL0781
|
| Length |
225 mm
|
| Weight |
435 g
|
| Max opening |
60 mm
|
| Main body material |
CR-MO
|
| Finish |
Phosphatizing
|
| Jaw |
approx. 60 HRC
|
| Jaw thickness |
9.7 ± 0.4 mm
|
| Throat depth |
3.1 ~ 3.2 mm
|
| Packing list | |
| Item NO. |
GL0781
|
| Packaging |
Sliding card
|
| Packing |
12 / 36 PCS / CTN / 15.8 / 16.6 KGS / 0.74'
|
