Brake Caliper and Brake Disc Tools
BK0083P-22

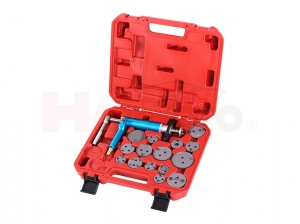

Air Power Brake Caliper Wind Back Tool (22 PCS)
Specifications
Designed to make disc brake services faster and energy saving.
Tool can be turned left- and right-ward - suitable for regular and reverse-threaded pistons.
Pneumatic powered tool is able to wind pistons back simply pressing a button.
Includes 21 adapters, fitting a wide range of vehicles.
Nylon body pneumatic tool with magnetic pins (black).
Tool can be turned left- and right-ward - suitable for regular and reverse-threaded pistons.
Pneumatic powered tool is able to wind pistons back simply pressing a button.
Includes 21 adapters, fitting a wide range of vehicles.
Nylon body pneumatic tool with magnetic pins (black).
Pneumatic Tool Description | |
Unit weight (PC) |
950 g / 2.1 lbs
|
Size (mm) |
258 × 173 × 97 mm / 10.1 × 6.8 × 3.8 in
|
Working pressure |
8 kg/cm2 / 113.7 psi
|
Noise emission |
64.3 dB
|
Vibration emission |
0.876 m/s2
|
Adapters Description | |||
Note:
Vibration Emission Test refers to ISOEN ISO 20643:2008/A1:2012
Hand-held portable power tools - Test methods for evaluation of vibration emission
Noise Test refers to BS EN ISO 15744:2008 Hand-held non-electric power tools -
Noise measurement code - Engineering method (grade 2) (ISO 15744:2002)
|
|||

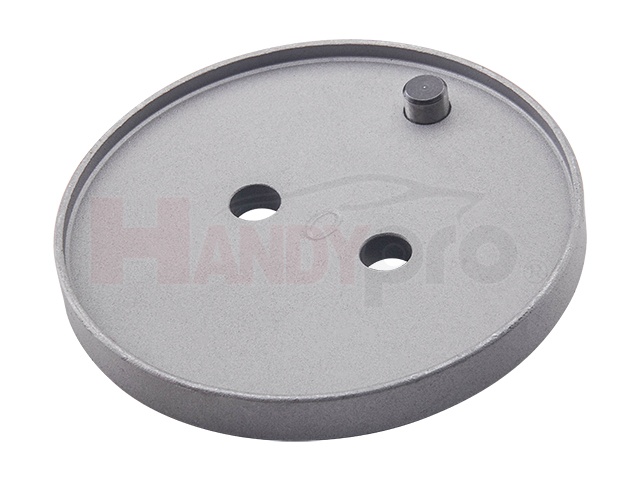

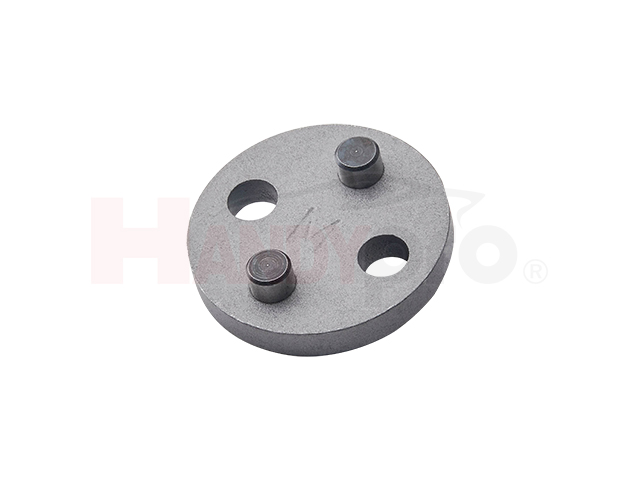

Number |
0, 2, 3, 4, 5, 6, 7, 8, 9, A, B1, B2, B3, B4, B5,
E, F, K, M, N, W |
||
Material |
S45C
|
||
Surface finish |
Phosphate
|
Pneumatic Tool Description
Instructions |

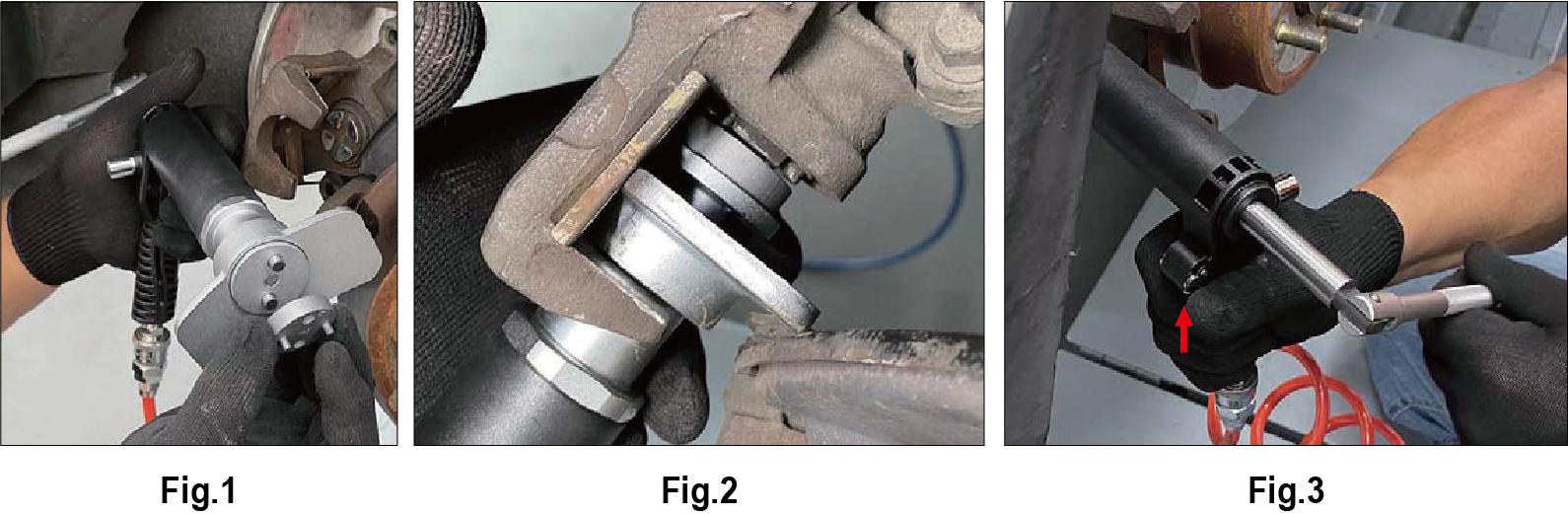

1. Choose a proper sized and pinned adapter (Fig. 1).
2. Connect the adapter to the magnetic pins on the pneumatic tool tip.
3. Connect the pneumatic tool to shop air line.
4. Press pressure release button and turn the rotating lever to adjust the length.
5. Mount the pneumatic tool to the brake caliper.
6. Press power button to fix the tool on the brake caliper (Fig. 2).
7. Make sure the tool is securely installed on the brake caliper.
8. Press power button continually and turn the rotating lever to wind back the brake piston (Fig. 3).
9. After the piston is winded back to the proper position, press pressure release button to remove the pneumatic tool from the brake caliper.
Applications |
Packing list | |
Item NO. |
BK0083P-22
|
Packaging |
Blow mold case
|
Packing |
5 SETS / CTN / 15.8 / 16.8 KGS / 2.6'
|
