Brake Caliper and Brake Disc Tools

BK0083P-23
BK0083P-23
BK0083P-23

Air Power Brake Caliper Wind Back Tool (23 PCS)

Specifications

Designed to make disc brake services faster and energy saving.

Tool can be turned left- and right-ward - suitable for regular and reverse-threaded pistons.

Pneumatic powered tool is able to wind pistons back simply pressing a button.

Includes 22 adapters, fitting a wide range of vehicles.

Nylon body pneumatic tool with magnetic pins (black).
Pneumatic Tool Description
Unit weight (PC)
950 g / 2.1 lbs
Size (mm)
258 × 173 × 97 mm / 10.1 × 6.8 × 3.8 in
Working pressure
8 kg/cm2 / 113.7 psi
Noise emission
64.3 dB
Vibration emission
0.876 m/s2
Adapters Description
Note:
Vibration Emission Test refers to ISOEN ISO 20643:2008/A1:2012
Hand-held portable power tools - Test methods for evaluation of vibration emission
Noise Test refers to BS EN ISO 15744:2008 Hand-held non-electric power tools -
Noise measurement code - Engineering method (grade 2) (ISO 15744:2002)

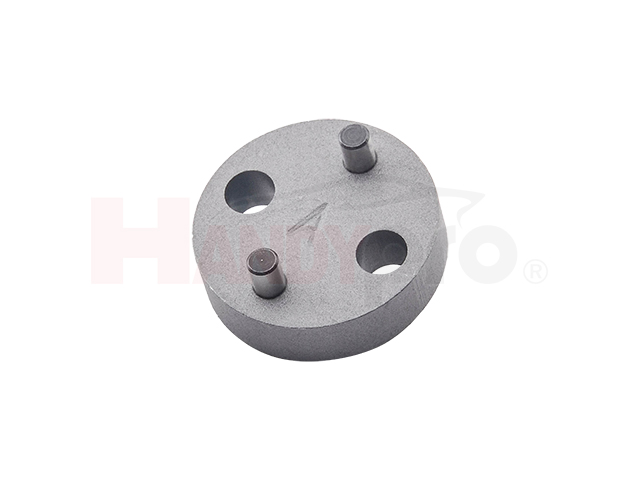

Number
0, 2, 3, 4, 5, 6, 7, 8, 9, A, B1, B2, B3, B4, B5,
E, F, K, K1, M, N, W
Material
S45C
Surface finish
Phosphate






























Pneumatic Tool Description
Instructions




1. Choose a suitable adapter.
2. Connect the adapter to the magnetic pins on the pneumatic tool tip (Fig. 1).
3. Connect the pneumatic tool to shop air line.
4. Press pressure release button and turn the rotating lever to adjust the length.
5. Mount the pneumatic tool to the brake caliper (Fig. 2).
6. Press power button to fix the tool on the brake caliper.
7. Make sure the tool is securely installed on the brake caliper.
8. Press power button continually and turn the rotating lever to wind back the brake piston (Fig. 3).
9. After the piston is winded back to the proper position, press pressure release button to remove the pneumatic tool from the brake caliper (Fig. 4)





Applications




Packing list
Item NO.
BK0083P-23
Packaging
Blow mold case
Packing
5 SETS / CTN / 16 / 17 KGS / 2.6'
